Sand casting is one of the most foundational and versatile metal casting techniques in manufacturing, capable of producing both small and extremely large components in a wide variety of metals. This guide, written from the perspective of a seasoned engineer, dives into the complete sand casting process—from the role of the pattern and the composition of the sand system to step-by-step process flows and inspection. Readers will learn the advantages, limitations, economic considerations, and real-world applications of sand casting, while also comparing it against other casting methods such as die casting, investment casting, gravity casting, and low-pressure die casting. Practical tables and technical insights make this an ideal resource for engineers, buyers, and anyone involved in foundry operations or metal product development.

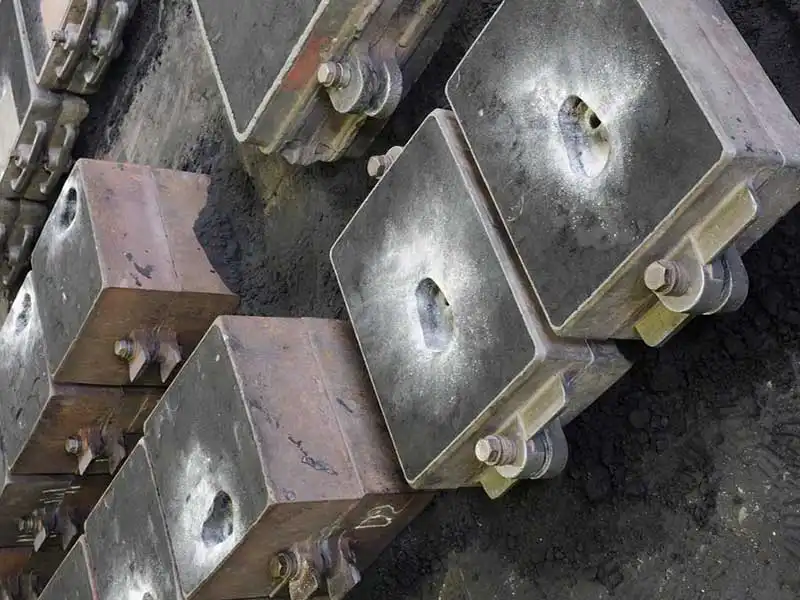

Sand casting mold
What is Sand Casting? Core Principles & Foundry Basics
Sand casting is one of the oldest and most widely used metal casting procedures. In the sand casting process, molten metal is poured into a sand casting mold shaped from a pattern. Once cooled and solidified, the sand cast part is removed, cleaned, and finished. Unlike permanent mold processes, the sand mould casting process uses expendable molds, making it highly versatile for one-off and low-to-medium volume production.
The Foundry Sand System Explained
Casting sand isn’t just dirt. It is an engineered material, typically made of silica sand mixed with binders (like clay or chemical resins) and additives to enhance performance. The properties of sand—grain shape, size distribution, thermal conductivity, and moisture content—greatly influence casting quality. Sand molding requires careful control of sand for molding to avoid defects like burn-on, erosion, or poor surface finish.
The Reusable Mold Concept
Unlike die casting, the sand casting mold is destroyed during the shakeout phase. This expendability allows for greater design freedom, enabling complex sand casting components. The trade-off is slower cycle times and more labor-intensive processes.
Fundamental Requirement: The Pattern
A pattern is a physical replica of the final sand cast metal part. It may include allowances for shrinkage and machining. Patterns can be made from wood, plastic, metal, or created through 3D printing. They are central to the sand casting procedure and form the cavity in the sand mold.
Step-by-Step: The Sand Casting Process Flow
Below is a comprehensive look at each stage in the sandcasting or sand moulding process:
3.1 Pattern Making & Core Making
- Materials: Wood, plastic, aluminum, 3D-printed polymers.
- Types: Split, matchplate, loose, cope-and-drag.
- Cores: Used to form internal cavities, made using core boxes and chemically bonded sand.
3.2 Molding: Creating the Cavity
3.2.1 Mold Preparation
- Assembling flasks: cope (top) and drag (bottom).
- Parting line is defined for separating mold halves.
3.2.2 Sand Compaction Techniques
| Method | Sand Type | Use Case |
|---|---|---|
| Hand Ramming | Green Sand | Prototyping, art casting |
| Jolting/Squeezing | Green Sand | Small/medium parts |
| Nobake/Furan/CO2 | Chemically Bonded Sand | Large molds, better dimensional accuracy |
| Shell Molding | Resin-coated Sand | Fine detail, small precision castings |
3.3 Mold Assembly
Inserting cores (if required), aligning the cope and drag, and securely clamping or weighting the mold.
3.4 Pouring
Molten metal is handled with ladles and poured into the mold via a gating system. Pour rate, temperature, and turbulence control are critical.
3.5 Cooling & Solidification
Controlled cooling is vital for grain structure and minimizing internal stresses. Shrinkage must be managed using risers and chills.
3.6 Shakeout
Once solidified, the mold is broken apart to retrieve the casting. Sand is reclaimed for reuse or disposed of responsibly.
3.7 Cleaning & Finishing (Fettling)
Gates, risers, and flash are removed. Surface finish may be improved using grinding or shot blasting. Machining may be needed for tight tolerances.
3.8 Inspection & Quality Control
Dimensional checks, visual inspection, and NDT (e.g., dye penetrant, X-ray, ultrasonic) ensure casting integrity.
Sand Casting Materials: What Metals Can You Cast?
Ferrous Alloys
- Cast Iron: Gray, ductile, malleable, white iron.
- Cast Steel: Carbon and low-alloy grades.
Non-Ferrous Alloys
- Aluminum: Widely used in automotive sand casting parts.
- Copper Alloys: Brass, bronze.
- Magnesium, Zinc, Nickel Alloys: Used for specific industry needs.
Key Selection Factors: Melting point, fluidity, shrinkage rate, and interaction with sand mold casting.
Sand Casting Advantages
Sand casting offers multiple advantages that make it a go-to choice in various industries. Below are several standalone benefit sections for greater clarity and emphasis.
Cost-Effective Tooling
Unlike die casting or investment casting, sand casting requires minimal tooling investment. Patterns can be produced quickly using wood or 3D printing, allowing fast turnaround and flexibility—especially useful for prototyping and small-batch production.
Extreme Size Flexibility
Sand casting is practically unmatched in producing large, heavy components such as engine blocks, pump housings, or aggregate industry castings. Mold size is limited primarily by foundry floor space and crane capacity.
Broad Alloy Compatibility
Whether you’re casting ferrous metals like ductile iron and carbon steel, or non-ferrous alloys such as aluminum, brass, and magnesium—sand casting handles them all. This makes it ideal for diverse applications across transportation, energy, and machinery.
Complex Internal Geometries
With the aid of sand cores, intricate internal cavities can be produced with relative ease. This supports the casting of parts like valve bodies or gearbox housings that require interior flow paths or chambers.
Fast Iteration & Short Lead Time
Green sand molds can be prepared quickly, and combined with digital patterning (like 3D printed patterns), lead times are significantly shorter than with permanent mold or die cast processes.
Adaptability for Low-to-Mid Volume Production
While sand casting can handle high volumes, it’s especially effective for medium and lower production runs. Foundries can switch between jobs with minimal retooling, making it efficient for contract manufacturing.
Local Sourcing & Scalability
Since sand casting is widespread and doesn’t require exotic equipment, manufacturers can often find capable sand casting suppliers locally. This reduces transportation costs and supports agile supply chains.
Environmentally Conscious Practices
Modern foundries often reclaim and recycle casting sand, reducing waste. Though traditional processes had environmental drawbacks, newer binders and dust control systems have made sand casting more sustainable.
- Size Capability: Ideal for large parts—gear housings, engine blocks.
- Material Flexibility: Broad alloy compatibility.
- Tooling Affordability: Low upfront cost compared to die casting.
- Complexity: Supports internal passages with cores.
- Lead Time: Fast for simple designs with green sand.
Sand Casting Limitations & Challenges
- Surface Finish: Rougher than investment casting.
- Tolerances: Looser; draft angles required.
- Defects: Porosity, inclusions, penetration.
- Labor-Intensive: Especially for traditional green sand casting.
- Environmental: Silica dust, spent sand disposal.
Critical Design Considerations for Sand Casting
7.1 Draft Angles
Essential for pattern removal. Typical range: 1°–3° depending on depth.
7.2 Section Uniformity
Avoid isolated thick sections—risk of shrinkage defects.
7.3 Ribs & Bosses
Add stiffness, reduce weight—but beware of hot spots.
7.4 Fillets & Radii
Prevent sharp transitions; improve metal flow and reduce stress.
7.5 Tolerancing
Understand realistic expectations based on sand casting molding type.
7.6 Parting Line Location
Plan for flash removal and mold separation.
7.7 Core Usage & Complexity
Balance complexity with risk and cost.
7.8 Gating & Risering Design
Work with the foundry; it influences yield and defect rates.
Sand Casting Costs: Key Drivers
| Cost Driver | Low-Cost Scenario | High-Cost Scenario |
|---|---|---|
| Pattern/Tooling | Simple wood pattern | 3D printed matchplate, complex core |
| Mold Material | Green sand | Chemically bonded sand |
| Metal & Yield | High yield aluminum part | Low-yield steel part with large risers |
| Labor | Hand rammed prototypes | Core-intensive, multi-flask assemblies |
| Volume | High batch runs | One-off or prototype |
| Size | Small valve body | Engine block or casting for mining |
| Finishing | Basic fettling | Shot-blasting, CNC machining |
Sand Casting vs. Other Casting Processes (Including Gravity & Low Pressure Die Casting)
Sand Casting vs. Die Casting
- Volume: Sand better for low-medium; die for high volume.
- Tooling: Sand much cheaper.
- Materials: Sand supports more alloys (e.g., cast iron).
Sand Casting vs. Investment Casting
- Finish: Investment is smoother.
- Cost: Sand is cheaper for larger, less intricate parts.
- Size: Sand can handle larger castings.
Sand Casting vs. Permanent Mold
- Speed: Permanent is faster for repetitive runs.
- Complexity: Sand better for cores/internal cavities.
Sand Casting vs. Gravity Die Casting
- Process: Gravity die casting uses permanent metal molds and relies on gravity to fill cavities. It offers better surface finish and tighter tolerances than sand casting.
- Tooling Cost: Higher than sand casting but lower than low-pressure die casting.
- Repeatability: Excellent for mid- to high-volume production.
- Limitation: Less suited for highly complex parts with deep cavities unless cores are used.
Sand Casting vs. Low Pressure Die Casting (LPDC)
- Process:Low pressure die casting uses controlled pressure to fill the mold from beneath, reducing turbulence and porosity.
- Surface Finish & Accuracy: Superior to sand casting; close to gravity die casting.
- Mold Cost: High; requires metal dies and automated systems.
- Application: Preferred for aluminum wheels, structural parts, and critical automotive components.
- Material Flow Control: Better feeding of thin sections and reduced oxide inclusions.
Summary Table: Sand vs. Gravity Die vs. Low Pressure Die Casting
| Feature | Sand Casting | Gravity Die Casting | Low Pressure Die Casting |
|---|---|---|---|
| Mold Type | Expendable (sand) | Permanent (metal) | Permanent (metal) |
| Filling Method | Gravity (manual pour) | Gravity (mold tilt/pour) | Controlled low pressure |
| Surface Finish | Rough | Good | Excellent |
| Dimensional Accuracy | Moderate | Good | Very Good |
| Tooling Cost | Low | Medium | High |
| Volume Suitability | Low to Medium | Medium to High | Medium to High |
| Core Use for Complexity | Common | Limited | Moderate (integrated cores) |
| Material Flexibility | Excellent | Good | Good |
| Applications | Large housings, gears | Engine brackets, covers | Wheels, suspension parts |
- Speed: Permanent is faster for repetitive runs.
- Complexity: Sand better for cores/internal cavities.
Modern Applications
- Automotive: Engine blocks, cylinder heads.
- Industrial: Pumps, valve housings.
- Heavy Equipment: Construction gear, mining castings.
- Art/Sculpture: Statues, custom metal art.
- Prototyping: Functional samples in production alloys.
Glossary: Sand Casting Terminology
This section reinforces critical keywords and educates readers on common terms used in the sand casting industry.
- Sand Casting: A casting process that uses sand molds.
- The Sand Cast: Refers to the resulting product after pouring molten metal into a sand mold.
- Casting Sand / What is Casting Sand?: Special sand used in foundry work, typically silica-based.
- Sand Molder: A worker or machine that prepares sand molds.
- Sand Cast / Sandcast / Sandcasting: Alternate forms describing the process or product.
- Metal Casting Sand / Sand for Casting: The granular material used to make molds.
- Sand Molding / Sand Moulding: The process of shaping sand around a pattern.
- Sand Casting Mold / Molded Casting: The sand form used to create castings.
- Sand Castings / Sand Casting Components / Parts of Sand Casting: Final products made using the sand casting process.
- Sand Casting Procedure / Sand Moulding Procedure / Metal Casting Procedure: Steps followed in making sand cast parts.
- Sand Casting Mold Making / Sand Casting Stages: Includes patterning, molding, pouring, and finishing.
- Sand Casting Steel / Steel Sand Casting / Sand Casting Metal: Use of steel or other metals in sand casting.
- Sand Casting Flow Chart: A diagram representing steps in the sandcasting process.
- How to Sand Casting / How to Make a Sand Cast Mold / How to Make a Sand Casting Mould: Common queries on sandcasting methods.
- Silica Sand Casting / Sand Mold Casting Process / Metal Casting in Sand: Specific terms for industrial variants.
- Aggregate Industry Castings: Sand cast parts used in construction, mining, and infrastructure.
- Sand Casting Machining: Post-casting processes like grinding and CNC machining.
- Casting and Moulding Process / Casting and Foundry Processes: Broader industry terms encompassing sand casting and other methods.
- Zandgieten / Sandguss: Dutch and German terms for sand casting.
Conclusion: Sand Casting’s Vital Niche
Sand casting remains irreplaceable for many applications due to its flexibility, cost-efficiency, and scalability. While limitations exist—surface finish, tolerances—it excels in large-scale production and multi-alloy adaptability. Good DFM, experienced foundry partners, and proper process control make sand casting a powerful tool for modern manufacturing.
Sand Casting FAQ: Engineer’s Quick Reference
Q: What is sand casting?
A: A metal casting process using expendable sand molds to form parts.
Q: What is casting sand made of?
A: Typically silica sand, with binders and additives.
Q: What metals can be sand cast?
A: Cast iron, aluminum, brass, bronze, steel, and more.
Q: How to make a sand casting mold?
A: Use a pattern in a flask, pack sand around it, remove pattern, then pour metal.
Q: What are the benefits of sand casting?
A: Low cost, large size capability, material flexibility, fast tooling.
Q: Is sand casting machining required?
A: Often yes—for tight tolerances and finish-critical surfaces.
Q: What are the stages of sand casting?
A: Pattern making, molding, pouring, cooling, shakeout, finishing, inspection.
Q: Which metal is most frequently used in the casting process?
A: Aluminum in non-ferrous; gray iron in ferrous foundries.
